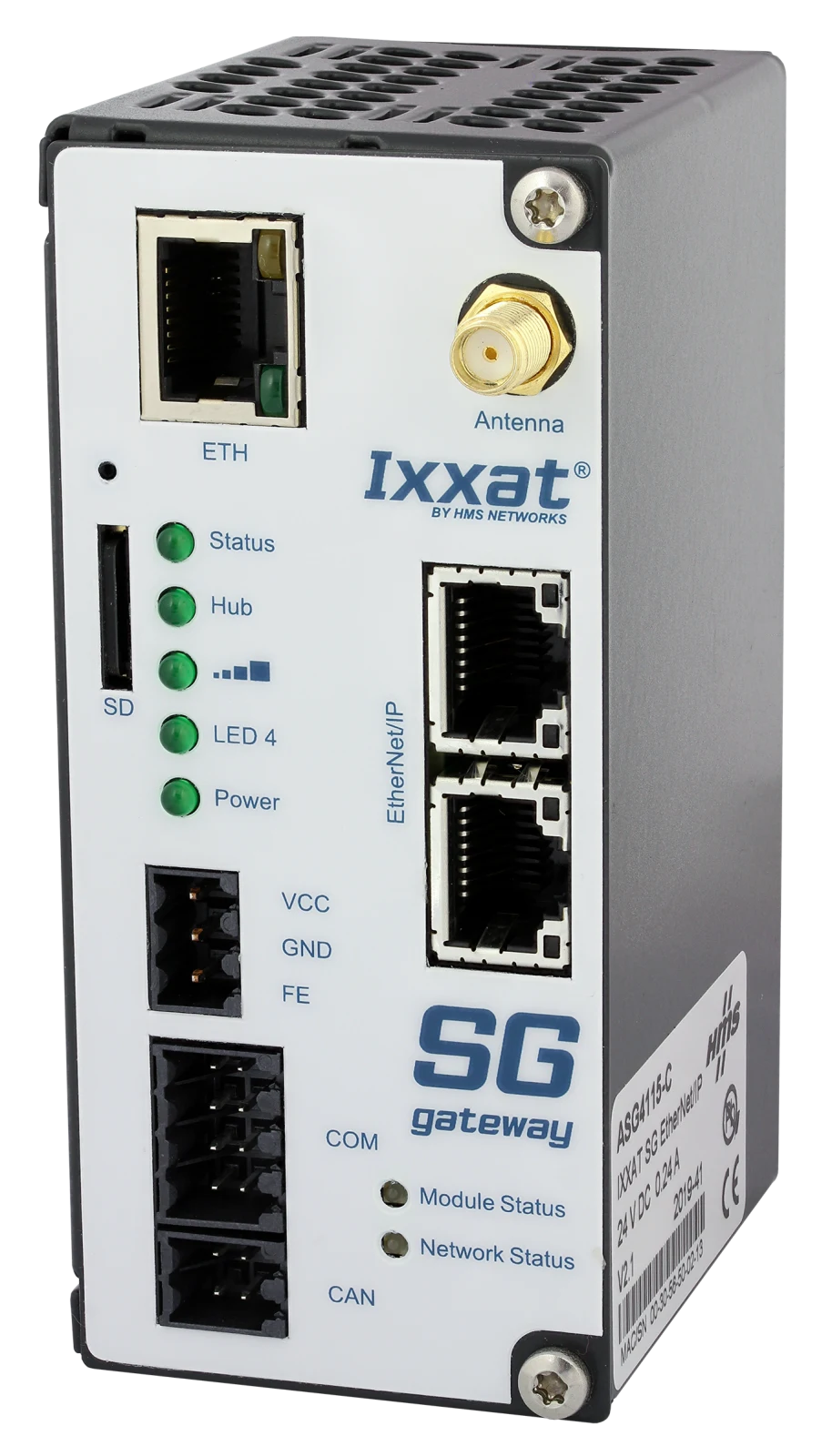

(X) IXXAT SG-gateway w.EtherNet/IP + IEC

SG Gateway with EtherNet/IP

Bridging industrial automation and energy communication

The SG Gateway connects intelligent electrical devices and energy systems with industrial automation networks.
It supports key energy communication protocols including IEC 60870-5-104, DNP3 and IEC 61850,
while providing seamless connectivity to EtherNet/IP-based automation systems.

Integrated OPC UA and MQTT functionality enables direct connection to SCADA, IIoT and cloud-based applications.
The EtherNet/IP interface for Allen-Bradley PLCs provides a real-time adapter interface with an integrated 2-port switch for easy network integration.

Additional field devices can be connected via Modbus TCP and Modbus RTU.
An optional wireless modem is available for remote connectivity.

Key Features & Benefits

• Connects IEC and DNP3-based electrical devices to industrial PLC systems via EtherNet/IP or Modbus
• Transfers field I/O data directly to SCADA systems
• Connects industrial machines to energy SCADA systems
• Connects switchgear to industrial PLCs
• Supports IEC 61850, IEC 60870-5-104, DNP3, Modbus, OPC UA and MQTT
• Ethernet connectivity with optional wireless modem
• Easy web-based configuration using a standard browser
• Integrated WebPLC for data conversion and control functions
• Robust metal housing for stand-alone operation and DIN rail mounting
• Cybersecurity features including user management, password protection, firewall and OpenVPN
• Field-upgradeable software with continuous HMS maintenance
• Configuration export and import for efficient volume installations
• Global technical support and consulting services

EtherNet/IP Interface

• Generic Device Profile support
• Dual-port cut-through switch
• Device Level Ring (DLR), beacon-based
• QuickConnect Class B support
• CIP Energy Object support
• Customized identity information
• Up to 128 groups
• Up to 509 bytes of process data in each direction using Forward Open
• Up to 1448 bytes of process data in each direction using Large Forward Open
• Multiple I/O assembly support
• Modular device support
• 2 × RJ45 EtherNet/IP 100 Mbit/s ports available simultaneously

Ethernet Interface

• 10/100 Mbit/s
• DHCP server
• SNTP
• NAT routing
• SNMP manager

Serial Interface

• Selectable RS-232 / RS-485
• Baud rate: 300 bps – 187.5 kbps

Security Features

• OpenVPN client
• TLS data encryption
• Integrated firewall
• Password protection with password policy
• User role support
• Root access authentication
• Standard ports for easy integration into firewalled environments

Modbus TCP

• Modbus TCP Client / Server
• Up to 128 server devices
• Up to 4096 values

Modbus RTU

• Modbus RTU Master / Slave
• Up to 128 serial Modbus RTU slave devices
• Up to 4096 values

DNP3 – Optional

• Outstation: 1 TCP link and up to 4 local/master links
• Up to 4096 data objects
• Value, quality and timestamp supported for each data object

IEC 61850 – Optional

• Client / Server
• GOOSE Publisher / Subscriber
• Up to 4096 data objects
• Value, quality and timestamp supported for each data object
• Up to 32 server devices in Client configuration

IEC 60870-5-104

• Client / Server functionality
• Up to 4096 data objects
• Value, quality and timestamp supported for each data object
• Up to 32 server devices in Client configuration
• IEC 60870-5-104 redundancy according to Norwegian User Convention

Wireless Modem – Optional

• SMS send and receive
• Remote telecontrol via IEC 60870-5-104 or IEC 61850
• GSM/GPRS Quad Band: 850 / 900 / 1800 / 1900 MHz
• UMTS Seven Band: 800 / 850 / 900 / AWS 1700 / 1900 / 2100 MHz
• Mini SIM (2FF)
• LTE/4G and NB-IoT options available on request

OPC UA

• Micro Embedded Device Server Profile
• UA-TCP, UA-SC and UA-Binary protocol and encoding
• Up to 128 groups and 4096 values
• Up to 4 concurrent client sessions

MQTT

• MQTT Client versions 3.1 and 3.1.1
• Flexible payload definition
• Last Will support
• QoS support
• Configurable Keep Alive interval
• TLS encryption

”`
