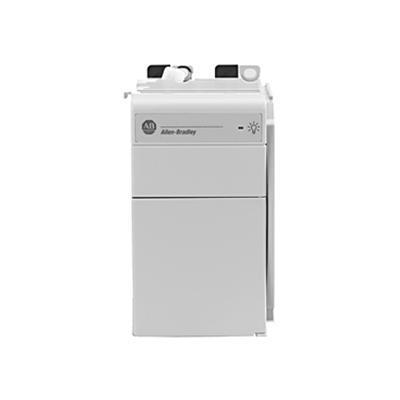

Expansion Power Supply Unit 24V DC

CompactLogix DC 2A/0.8A Power Supply

259,95  / sales pack Sales pack incl. 1 PCSReference price 259,95 / 1PCS

By order

Product number: 1769PB2Product order number: 1769PB2Manufacturer's product number: 1769-PB2Product commodity code: 85044090

Each 1769-L3x controller and additional bank of I/O modules requires a 1769 power supply. Place 1769 I/O modules to the left or right of the 1769 power supply. As many as eight I/O modules can be placed on each side of the power supply.

Expansion power supply unit, 24V DC.

Power Supply, CompactLogix, DC, 19.2-31.2V DC Input, 5V at 2 A or 24V at 0.8 A Output

Weight 0,483 kg
Quantity in the package: 1Unit: PCS

Input voltage range: 19,2...31,2V DC
Input voltage, nom: 24V DC
Power consumption: 50VA @ 24V DC
Current capacity @ 5V: 2 A
Current capacity @ 24V: 0,7 A

Module location: DIN rail or panel mount
Power supply distance rating: 8

Height: 118 mm
Width: 70 mm
Depth: 78 mm
Weight: 630 g

Temperature, operating: 0 °C…60°C
Temperature, nonoperating: -40 °C…+85°C
Relative humidity: 5%...95%
