ETA
Steel Box 600\*400\*200
(X) Steel Box 600*400*200
Industrial wall-mounted steel enclosure with IP66 and IK10 protection, designed for electrical and automation equipment in demanding industrial environments.
51,92 € / sales pack Sales pack incl. 1 pcs
In stock

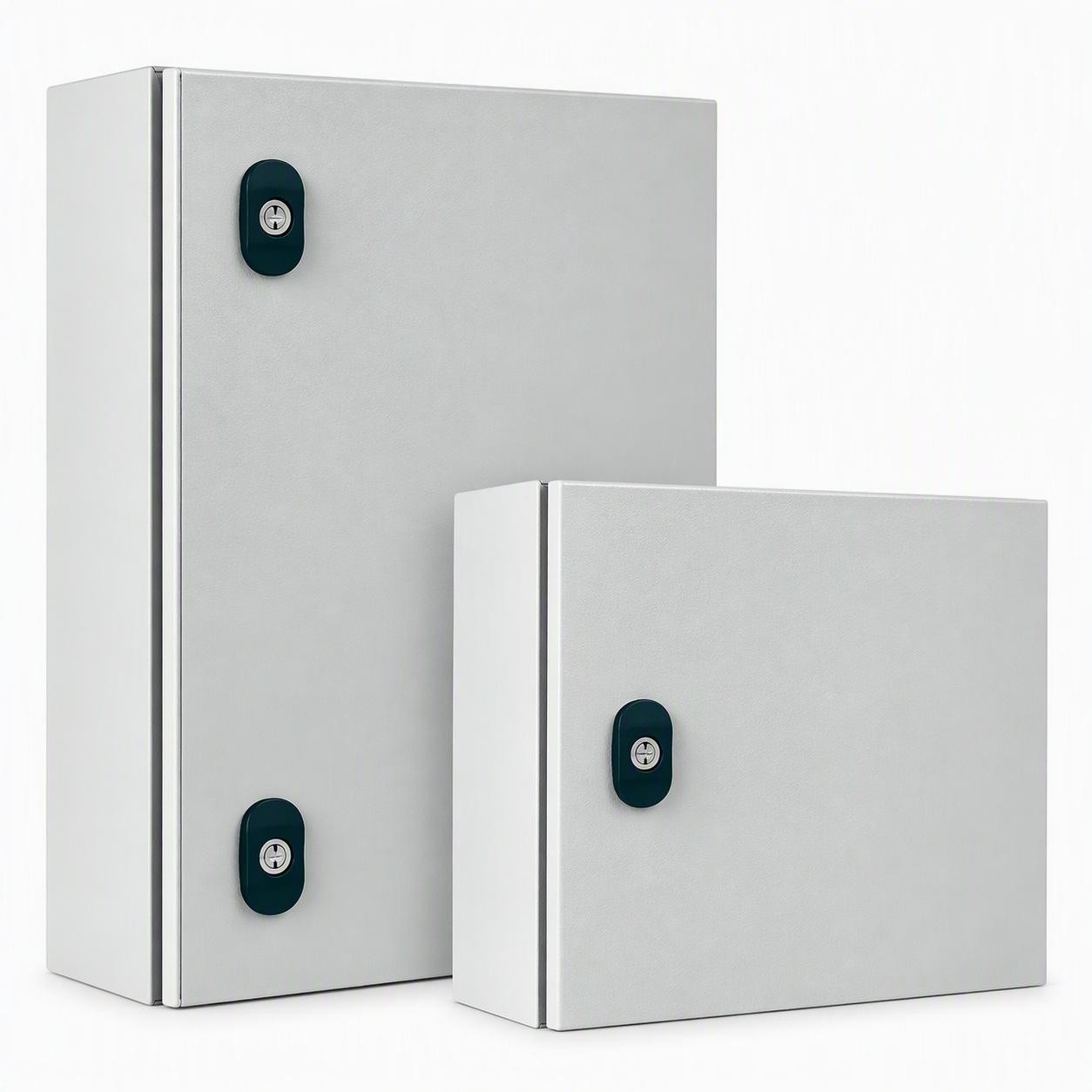

ETA ST6420 is a wall-mounted industrial enclosure manufactured from painted sheet steel and designed to protect automation and electrical equipment in demanding environments. The enclosure provides excellent protection thanks to its IP66 ingress protection rating and high IK10 mechanical impact resistance.
Key Features
- Dimensions (H × W × D): 400 × 600 × 200 mm
- Material: 1.5 mm sheet steel body and door
- Mounting plate: 2.5 mm Sendzimir galvanized steel
- Protection rating: IP66 / NEMA 4
- Impact resistance: IK10
- Finish: textured epoxy polyester powder coating
- Colour: RAL 7035 (light grey)
- Sealing: continuous two-component polyurethane foam gasket
Applications
Suitable for industrial automation systems, power distribution equipment, control panels and electrical installations requiring reliable protection against dust, water ingress and mechanical impacts.
Package Contents
- Steel enclosure with plain door
- Reversible door assembly
- 2 mounting rails
- Removable galvanized mounting plate
- Cable gland plate with sealing gasket
- Locking system with Ø3 mm double-bit key
- Grounding screws and mounting accessories
Accessories
The enclosure can be equipped with a wide range of dedicated accessories, including mounting plates, DIN rails, hinges, cable management components and additional installation accessories.
| Weight | 15 kg |
|---|
