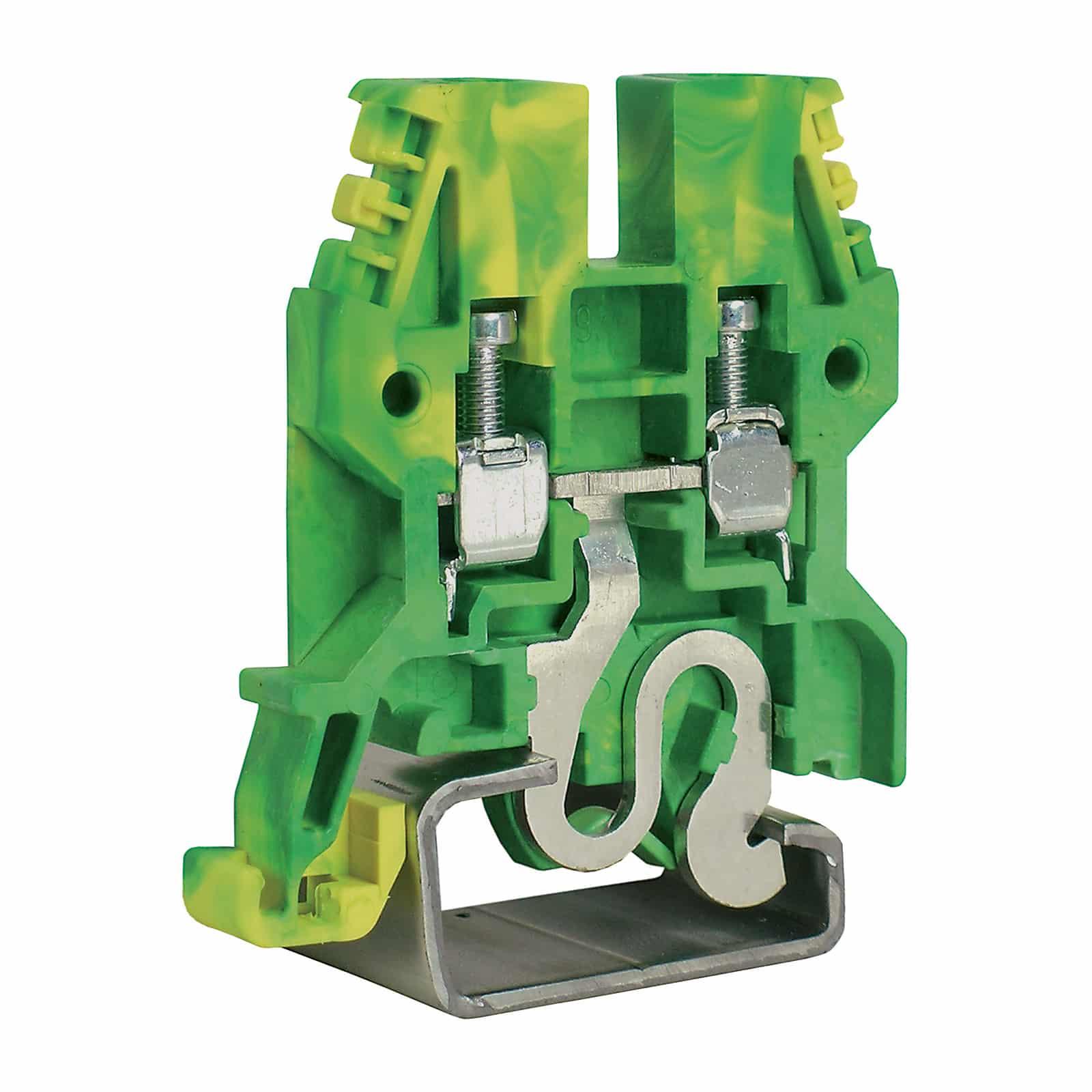

(X) TED.4 EARTH TERMINAL BLOCK

Cabur TE400 is a single-level screw terminal block with earth connection designed for reliable grounding and conductor termination in industrial control panels and electrical distribution systems. The terminal belongs to the Cabur TE Series and is suitable for mounting on G32 rails.

The terminal block supports conductors up to 4 mm² and features a compact 6.5 mm width, allowing efficient use of DIN rail space. High-quality insulating materials, robust screw-clamp technology and industrial approvals make it suitable for demanding applications in automation, machinery and power distribution systems.

Key Features:
• Single-level earth terminal block
• Rated conductor size 4 mm²
• Screw connection technology
• Compact 6.5 mm pitch
• DIN rail mounting
• Polyamide UL94 V-0 insulation material
• Suitable for industrial grounding applications

Manufacturer: Cabur S.r.l.

Series: TE Series

Model: TE400

Type: TED.4

Function: Ground Terminal Block

Rated Cross Section: 4 mm²

Connection Type: Screw Terminal

Flexible Wire Range: 0.2...6 mm²

Rigid Wire Range: 0.2...6 mm²

Maximum Voltage (UL): 600 V

Rated Impulse Voltage: 8 kV

Pollution Degree: 3

Stripping Length: 10 mm

Tightening Torque: 0.5...1.2 Nm

Width (Pitch): 6.5 mm

Length: 50 mm

Colour: Yellow-Green

Insulation Material: Polyamide UL94 V-0

Temperature Index: 130 °C

Mounting: G32 Rail
