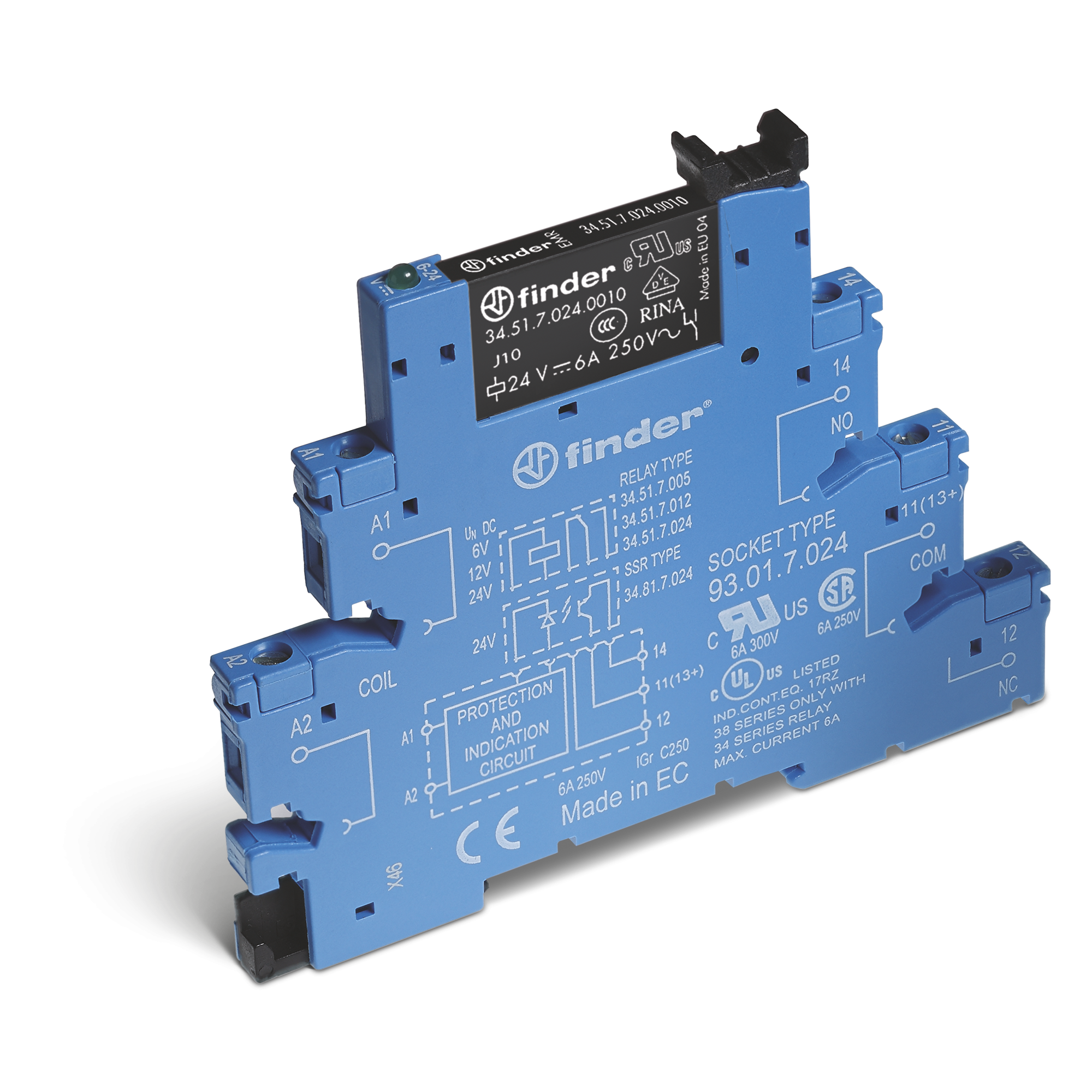

(X) Relay Module 1CO 6A 110-125V AC/DC

Relay Interface Module is a compact PLC interface relay designed to provide reliable isolation and signal switching between control systems and field devices. The module is suitable for industrial automation applications requiring safe and efficient interfacing of PLC outputs with higher-power loads.

Featuring a slim 6.2 mm housing and DIN rail mounting, the module combines space-saving installation with dependable switching performance. The electromechanical relay version provides a 1 CO (SPDT) contact configuration with a rated switching current of 6 A, making it suitable for a wide range of control and signalling applications.

Key Features:
• Compact 6.2 mm wide housing
• Electromechanical relay output
• 125 V AC/DC coil voltage
• 1 CO (SPDT) contact configuration
• 6 A switching current
• DIN rail mounting according to EN 60715
• Designed for PLC interfacing applications
`

Manufacturer: Cabur S.r.l.

Product Type: Relay Interface Module

Technology: Electromechanical Relay (EMR)

Mounting: 35 mm DIN Rail (EN 60715)

Terminal Type: Screw Terminal

Contact Configuration: 1 CO (SPDT)

Contact Material: AgNi + Au

Rated Current: 6 A

Rated Contact Voltage: 250 V AC

Coil Voltage: 125 V AC/DC

Rated Power AC: 0.6 VA

Rated Power DC: 0.6 W

Operating Range AC: 88 ... 138 V

Operating Range DC: 88 ... 138 V

Consumption: 5 mA

Holding Voltage: 75 V AC/DC

Drop-Out Voltage: 12.5 V AC / 6.25 V DC

Electrical Life: 60,000 cycles

Insulation Coil/Contacts: 6 kV

Ambient Temperature: -40 ... +55 °C

Dimensions: 88.4 × 72.1 × 6.2 mm
