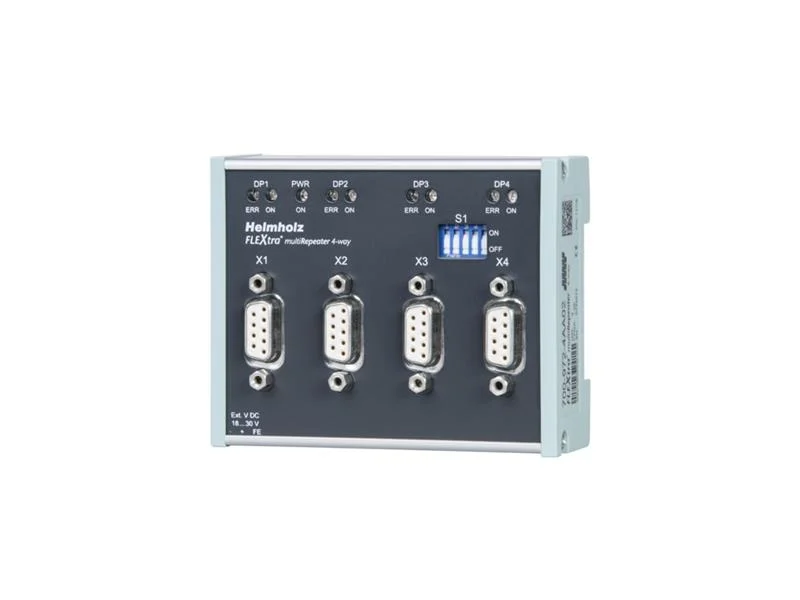

Helmholz FLEXtra® PROFIBUS multiRepeater 4-way, 700-972-4AA02

716,40 € / sales pack Sales pack incl. 1 PC

By order

Product number: 7009724AA02Product order number: 7009724AA02Manufacturer's product number: 700-972-4AA02Product commodity code: 85389091

Helmholz FLEXtra® PROFIBUS multiRepeater 4-way is a DIN rail mounted multi-PROFIBUS repeater designed for extending and segmenting PROFIBUS-DP networks.

The device regenerates the incoming electrical bus signal and retransmits it, restoring signal level, slope and duty cycle. A single multiRepeater can expand a PROFIBUS system by up to four separate segments.

The multiRepeater can be used for bus extension, increasing the number of participants, creating spur lines and setting up star networks. It can also be used in MPI networks. All PROFIBUS segments are electrically isolated, while integrated status LEDs provide a clear indication of the status of each segment.

Key Features:
• Four PROFIBUS-DP segments
• PROFIBUS network extension and segmentation
• Supports star network configurations
• Bus signal regeneration
• Automatic transmission rate detection
• Transmission rate up to 12 Mbps
• Electrical isolation between all segments
• Status LEDs for each segment
• Suitable for MPI networks
• DIN rail mounting

Weight 0,275 kg
Quantity in the package: 1Unit: PC

Manufacturer: Helmholz
Product Series: FLEXtra®
Product Type: PROFIBUS multiRepeater 4-way
Order Number: 700-972-4AA02
Protocol: PROFIBUS-DP
Number of PROFIBUS Interfaces: 4
Transmission Rate: Up to 12 Mbps, automatic detection
Connection: 9-pin SUB-D female connector
Supply Voltage: 24 V DC, 18–30 V DC
Current Draw: Typically 280 mA at 24 V DC without load
Output Voltage per Segment: 5 V, 150 mA
Electrical Isolation: 500 V between segments
Status Indication: 9 LEDs
Dimensions (D × W × H): 35 × 94 × 72 mm
Weight: Approx. 180 g
Operating Temperature: 0…+60 °C
Transport and Storage Temperature: -25…+75 °C
Relative Humidity: 95%, non-condensing
Pollution Degree: 2
Protection Rating: IP20
Approval: CE
