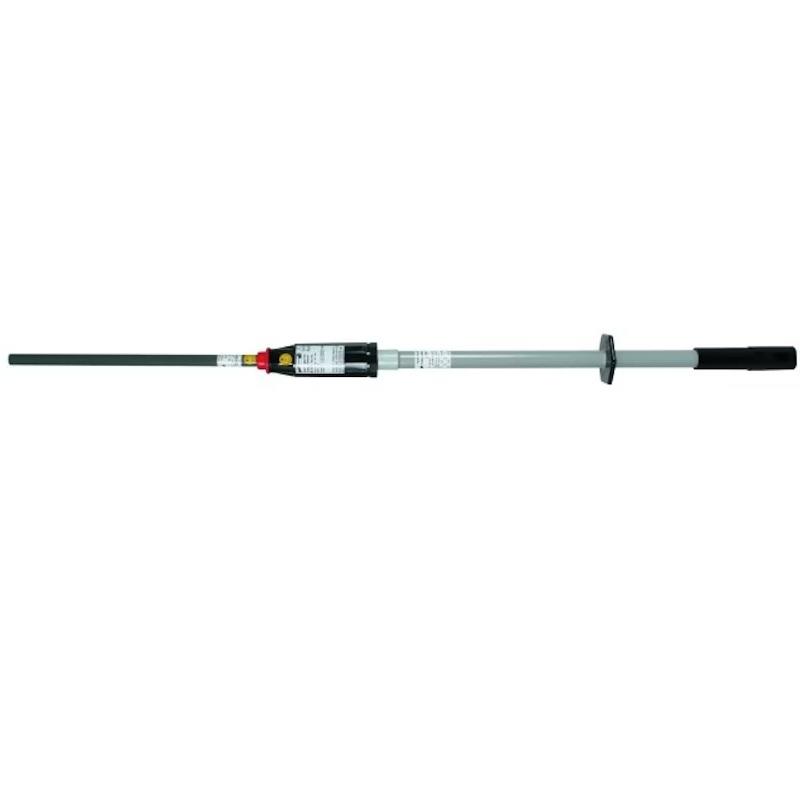

PHE3 voltage dedector 6 20 S SN7147 GB/FI

PHE III voltage dedector with visual and acoustic indication, indoor and outdoor. Nominal voltages from 6 to 20 kV / 50 Hz, in accordance with IEC / EN 61243-1 (DIN VDE 0682 Part 411)

Nominal voltage: 6 ... 20 kV
Type of voltage: a.c.
Frequency: 50 Hz
Total length: 1575 mm
Insertion depth: 780 mm
Length (indicator with test prod): 950 mm
Weight: 1.23 kg
Standard: EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range: -25 °C ... +55 °C, climatic category N

For: Indoor and outdoor installations
Application: Switchgear installations and overhead lines
Design: Single-pole
Indication: Acoustic and visual
Self-testing element: Yes

Material (test electrode): Copper alloy/gal Sn
Material (test prod): Glass-fibre reinforced epoxy resin tube
Material (indicator): Plastic, fully insulated
Material (insulating stick): Glass-fibre reinforced polyester tube
