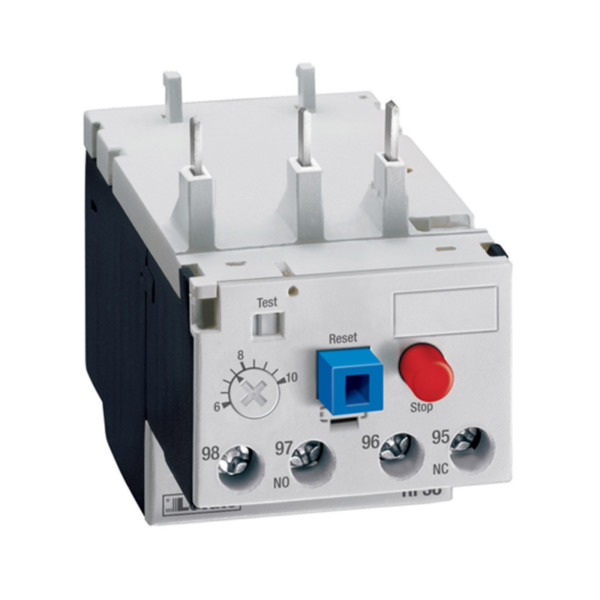

Lovato Lämpörele 2,5-4 A

Motor protection relay 2,5-4,0

52,29  / myyntieräMyyntierä sis. 5 KPLVertailuhinta 10,46 / 1KPL

Varastossa

Tilauskoodi: RF380400Valmistajan tuotenumero: RF380400Tuotteen tullikoodi: 85362010

Lovato Lämpörele 2,5-4 A.
Hyväksynnät: CE, CSA, cULus, IEC, RoHS, UL.

Motor protection relay, phase failure / single phase sensitive. Three pole (three phase), manual or automatic resetting. Direct mounting on BF09 – BF38 contactors, 2.5…4A.

  • Number of poles: 3
  • Overvoltage category: III
  • Pollution degree: 3
  • Frontal IP degree: IP20
  • Type of release: Thermal
  • Protection fuse
    • gG (IEC) 6A
    • aM (IEC) 4A
    • RK5 (UL) 15A
  • Phase failure detection: Yes
  • Reset mode: Manual or automatic
  • Rated insulation voltage Ui IEC/EN: 690V
  • Rated impulse withstand voltage Uimp: 6kV
  • Rated operational voltage: 690V
  • Operational frequency
    • min 0Hz
    • max 400Hz
  • Operational current Ie
    • Operational current min 2.5A
    • Operational current max 4A
  • Tripping class: 10A
  • Test Button: Yes
  • Trip indicator: Yes
  • Terminals
    • type: Screw and washer
    • screw: M4
    • width: 12.6mm
    • tool: Philips 2
  • Tightening torque for terminals
    • min 2Nm
    • max: 2.5Nm
    • min 1.5lbin
    • max 1.8lbin
Paino 0,16 kg
Määrä pakkauksessa: 5Yksikkkö: KPL
