Heater HGK 047 30W 120-240V AC/DC

Compact enclosure heater with a PTC heating element prevents condensation in control cabinets. HGK 047 is a convection heater that is ideal for use in small control cabinets and enclosures. The heater’s body is made of an anodized aluminum profile.

• PTC heating element with dynamic response behaviour
• Enclosure heater is designed for long-term use
• Quick to mount using clips for 35 mm DIN rail

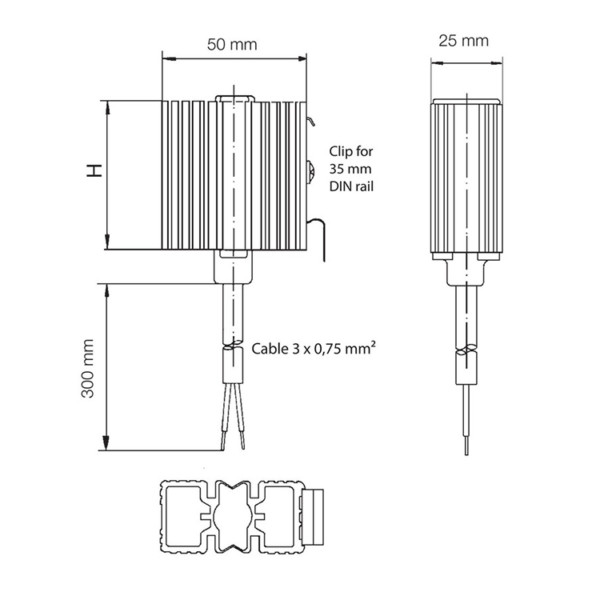

3.0A, connection: 3 x AWG 20, Size: length 70mm, width 50mm x 25mm, heating capacity m2: 30W, 120-240V AC/DC

Operating voltage: 120 - 240 V
Voltage type: AC/DC
Frequency: 50/60 Hz
Heating capacity: 30 W
Inrush current max: 3.0 A
Rec. pre-fuse T (time-delay): 4.0 A
Connection: 3 x 0,5 mm² x 300 mm wire (silicate)

Heating element: PTC resistor - temperature limiting
Heater body: extruded aluminium profile, anodised
Mounting: clip for 35mm DIN rail, EN 60715
Fitting position: vertical airflow (air outlet up, connection on bottom)

Operating/Storage temperature: -45 to +70 °C
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP44 / I (earthed)
