Digital time switch 1CO 16A 250VAC

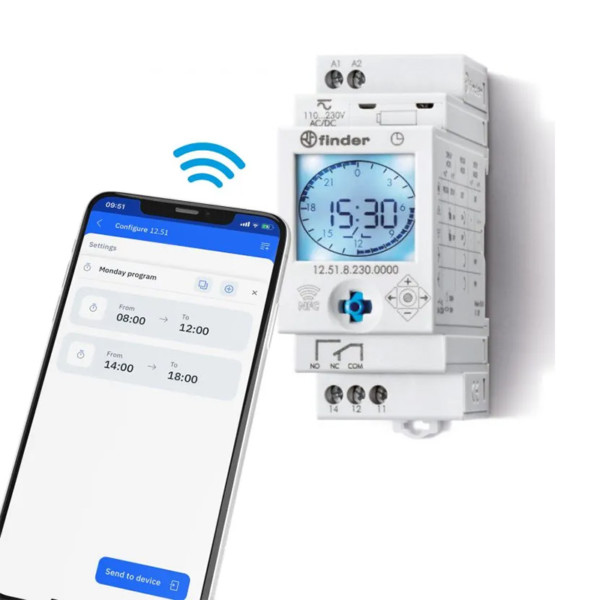

Type 12.51 Digital (Analogue-style) time switches, 1 CO 16 A, with daily/weekly programming and two programming modes:
• Classic via joystick
• Smart via smartphone with NFC technology

Shortest programming interval of 30 minutes. Easily programmable in daily or weekly configuration

• Automatic summer/winter time change
• Changeover 16 A
• Supply voltage: 110…230 V AC/DC
• LCD display for viewing, configuration and programming
• Block with 4-digit PIN
• Backlit display
• Internal battery for programming without power supply, easily replaceable
• Separation between the power supply circuits and contacts
• Width 35 mm
• 35 mm rail (EN 60715) mounting
• Cadmium-free Contacts

Contact specification:
Contact configuration: 1 CO (SPDT)
Rated current/Maximum peak current: 16/30A (120 A - 5 ms)
Rated voltage/Maximum switching voltage: 250/400 V AC
Rated load AC1: 4000 VA
Rated load AC15 (230 V AC): 750 VA
Minimum switching load: 1000 mW (V/mA) (10/10)
Standard contact material: AgSnO2

Supply specification:
Nominal voltage (UN): 110…230 V AC (50/60Hz), 110…230 V DC
Rated power AC/DC: 2.8/0.9 VA (50 Hz)/W
Operating range: 88…264 V AC (50 Hz), 88…264 V DC

Technical data:
Switching intervals: 48
Minimum switching interval: 30 min
Accuracy: 1 s/day
Ambient temperature range: –20…+50 °C
Protection category: IP 20
